1-7L Portable Home Oxygen-Concentrator
| Modle | 11HW |

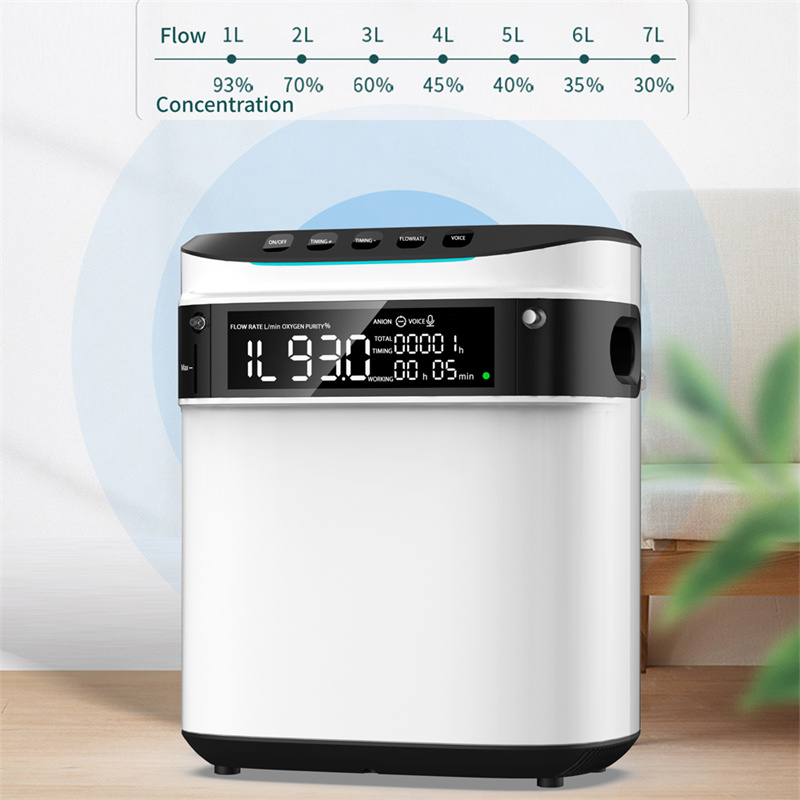

| Oxygen purity | 1L~93%, 2L~70%, 3L~60%, 4L~45%, 5L~40%, 6L~35%, 7L~30% |
| Oxygen output | 1L-7L adjustable |
| Atomization Rate | ≥0.2ml/min |
| Rated voltage | AC220±22V(or 110V) 50-60Hz |
| Input power | 150VA(W) |
| Negative ion function | The use of high-frequency negative ion transmitter |
| Oxygen generation method | Pressure swing adsorption(PSA) |
| Atmospheric pressure range | 86kpa~106kpa |
| Net weight | 6.5kg |
| Size(cm) | 376(L)*284(W)*451mm(H) |
| Cartoon pieces | 2pcs/cartoon |
DETAILS
Home Oxygen Concentrator 1L-7L Adjustable:
1. Oxygen concentrator with remote control or intelligent touch control.
2. Infrared remote control within 20-30m.The machine is equipped with a timing function.
3. Oxygen concentrator machine with over 30-90% oxygen purity, 1-7L/M adjustable flow rate.
4. Oxygen concentrator for home has 8 grade filtration system,it can provide clean and safe oxygen for you.
5. Oxygen concentrator has flow regulation, voice broadcast function,timer operation function .Can make the oxygen and atomization at the same time.
6. The noise is less than 45dB, night use will not affect sleep.
7. The continuous working time is 24 hours. It can work 7/24. It’s not battery back up.
8. Customization for oxygen concentrators is acceptable.
The oxygen concentrator is Suitable for busy work,overwork,memory decline and the elderly,students,workers,pregnant women and so on.Respiratory system diseases, cardiovascular and cerebrovascular diseases; plateau hypoxia; middle-aged and elderly people,pregnant women, students who have been engaged in mental work for a long time; people who have long been engaged in underground or confined space operations, excessive People who are exhausted from exercise and lack of oxygen.

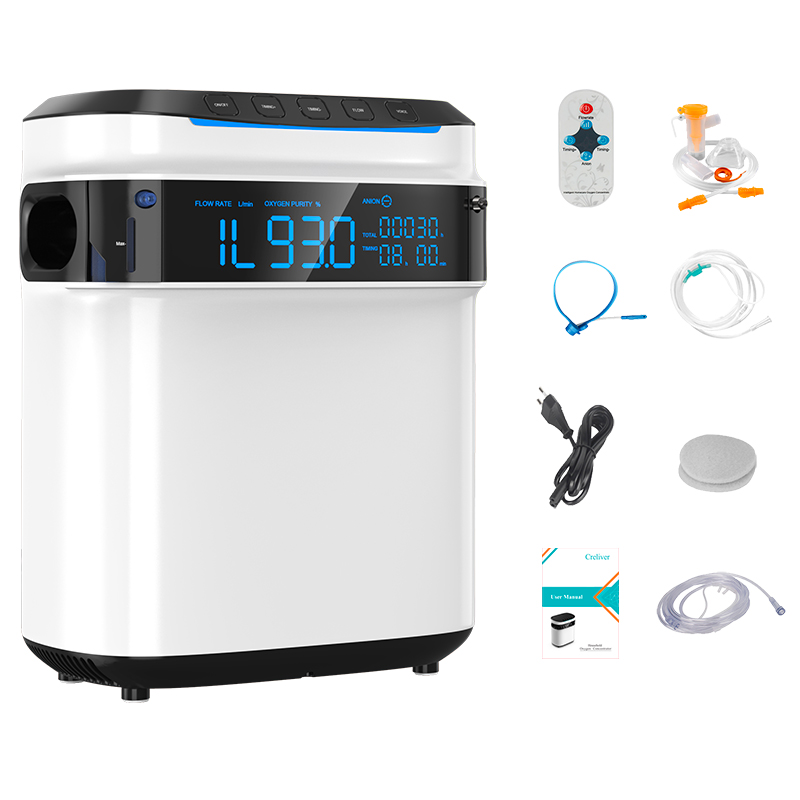

Packaging :
Main Device *1;
Power plug *1;
Nasal Tube *1;
Atomization Cup*1;
Ear Absorber*1;
Remote control*1;
Replacement filter*2;
English Manual*1.
Specification
|
Model |
11HW |
|
Oxygen concentration |
1L~93%,2L~83%,3L~76%,4L~61%,5L~43%,6L~36%,7L~31% |
|
Display control |
HD LED touch screen |
|
Rated voltage |
220V 50Hz /110V 50Hz |
|
Control distance |
20-30 meters infrared remote control |
|
Net weight |
6.5kg |
|
Operating noise |
≤45dB(A) |
|
Oxygen generation method |
Pressure Swing Adsorption(PSA) |
|
Size |
376*284*451mm |
|
Inhalation method |
Ear hanging oxygen, Nose suction (earhook oxygen inhaler, nasal cannula) |
|
Oxygen output |
1L-7L adjustable |
|
Max Oxygen flow rate |
7L/min |
|
Input power |
400VA |
|
Negative ion function |
The use of high-frequency negative ion transmitter |
|
Oxygen outlet pressure |
20-70kPa |
|
Storage and transportation condition |
Temperature range: -20℃~+55 ℃ Relative humidity: ≤ 95%RH |
|
Normal working environment |
Atmosphere pressure: 500hPa~1060hPa(10.15psi~15.37psi) Ambient temperature :5℃-40℃ Relative humidity:30%~80%RH Air pressure：860hPa-1060hPa |
